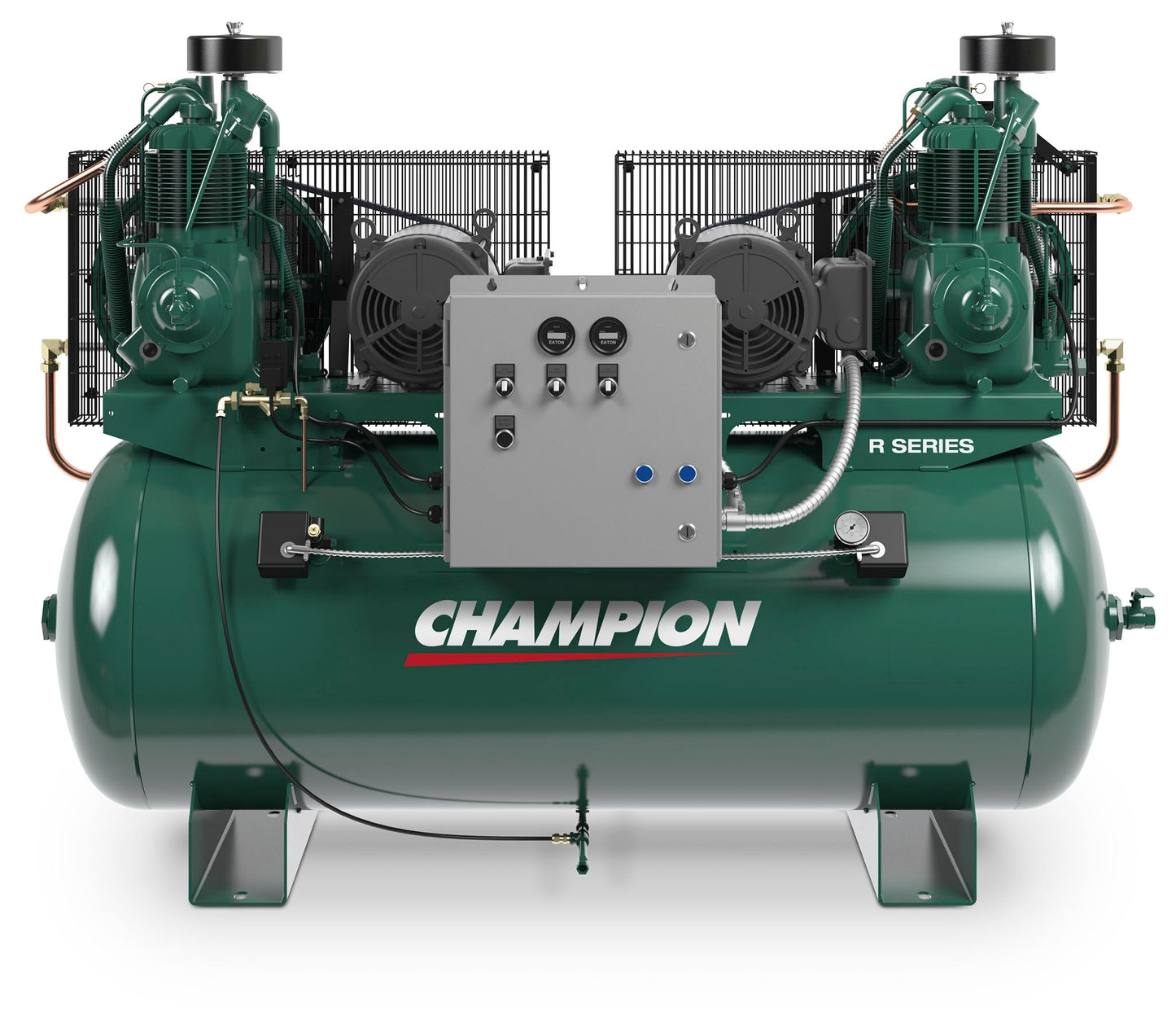

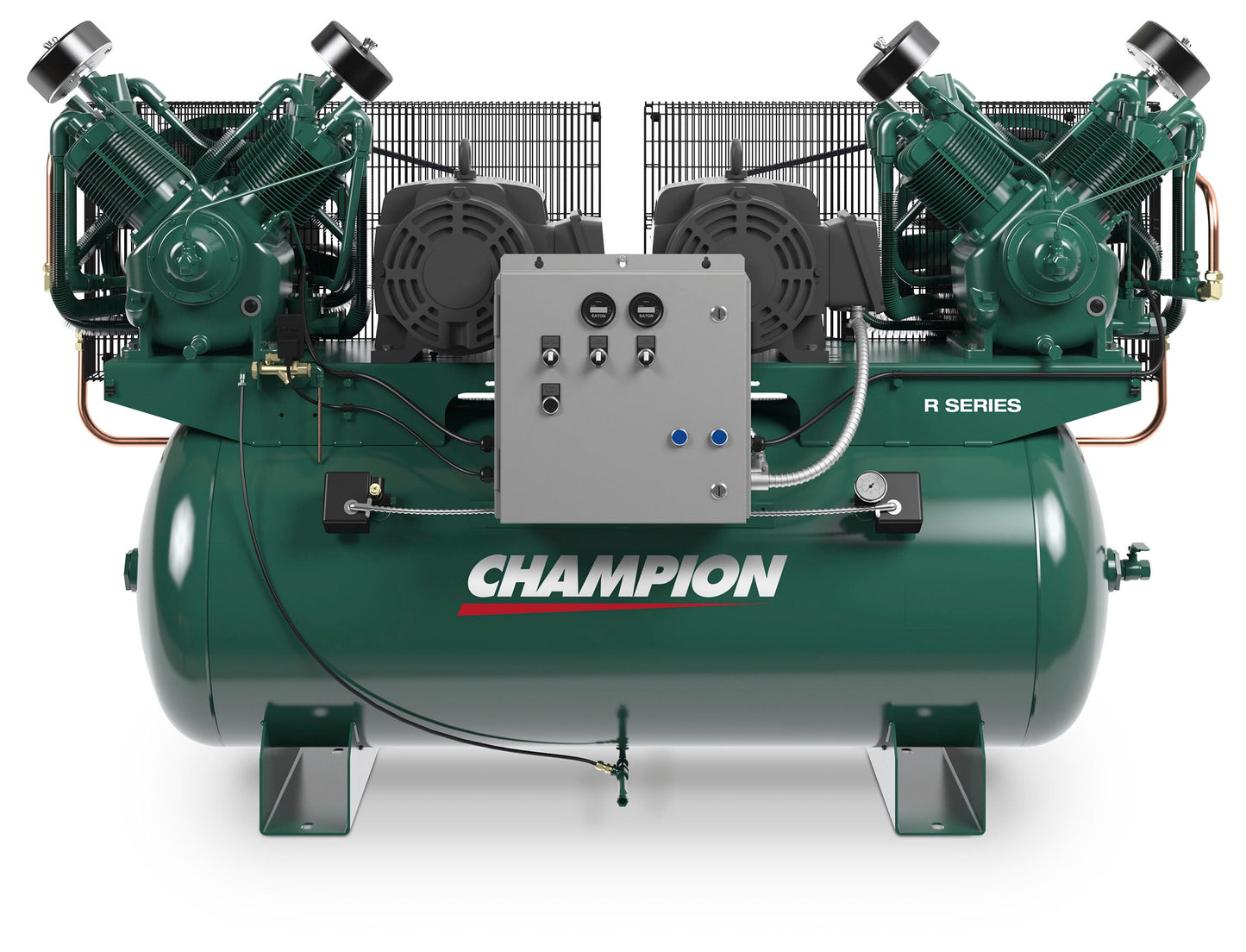

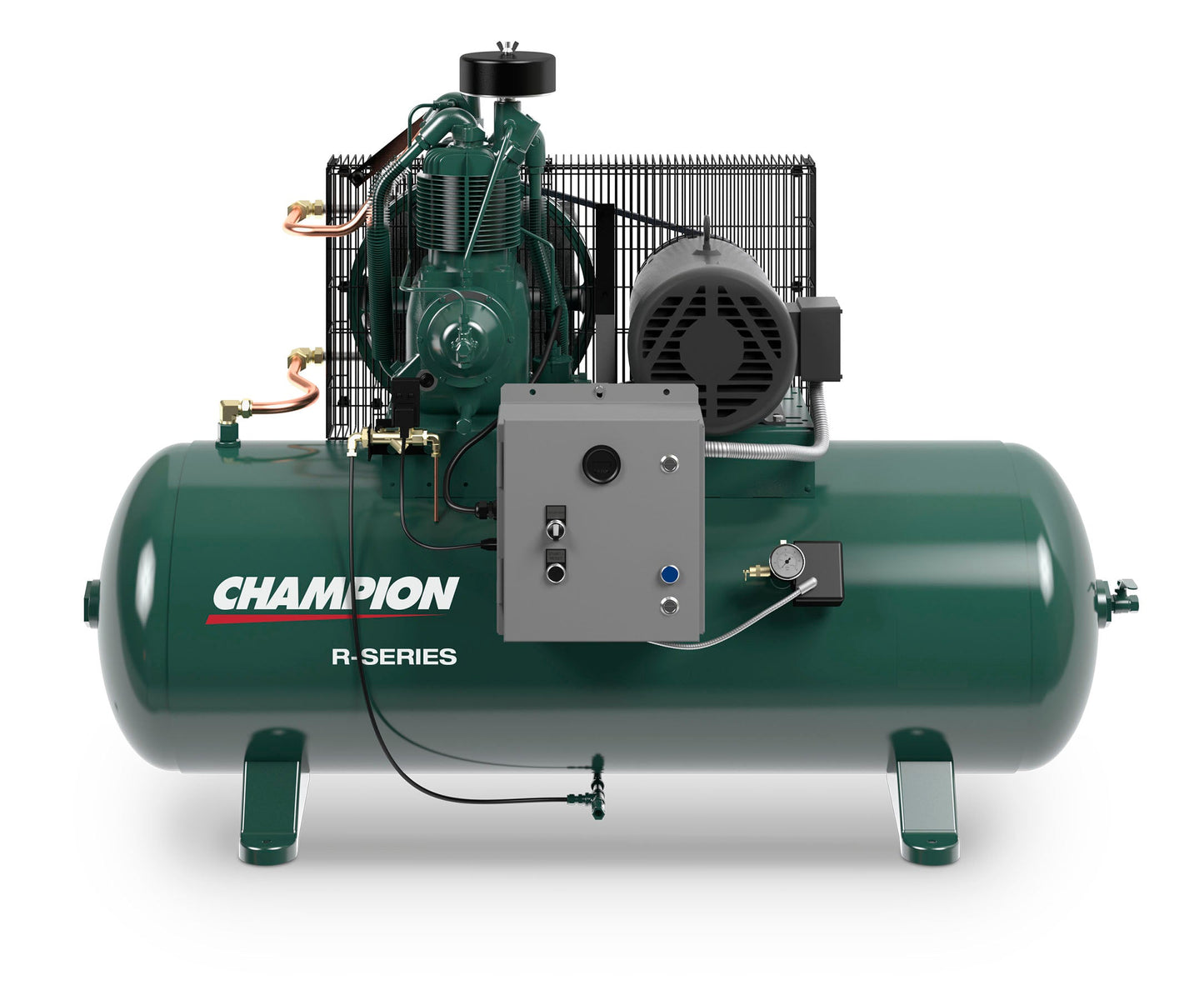

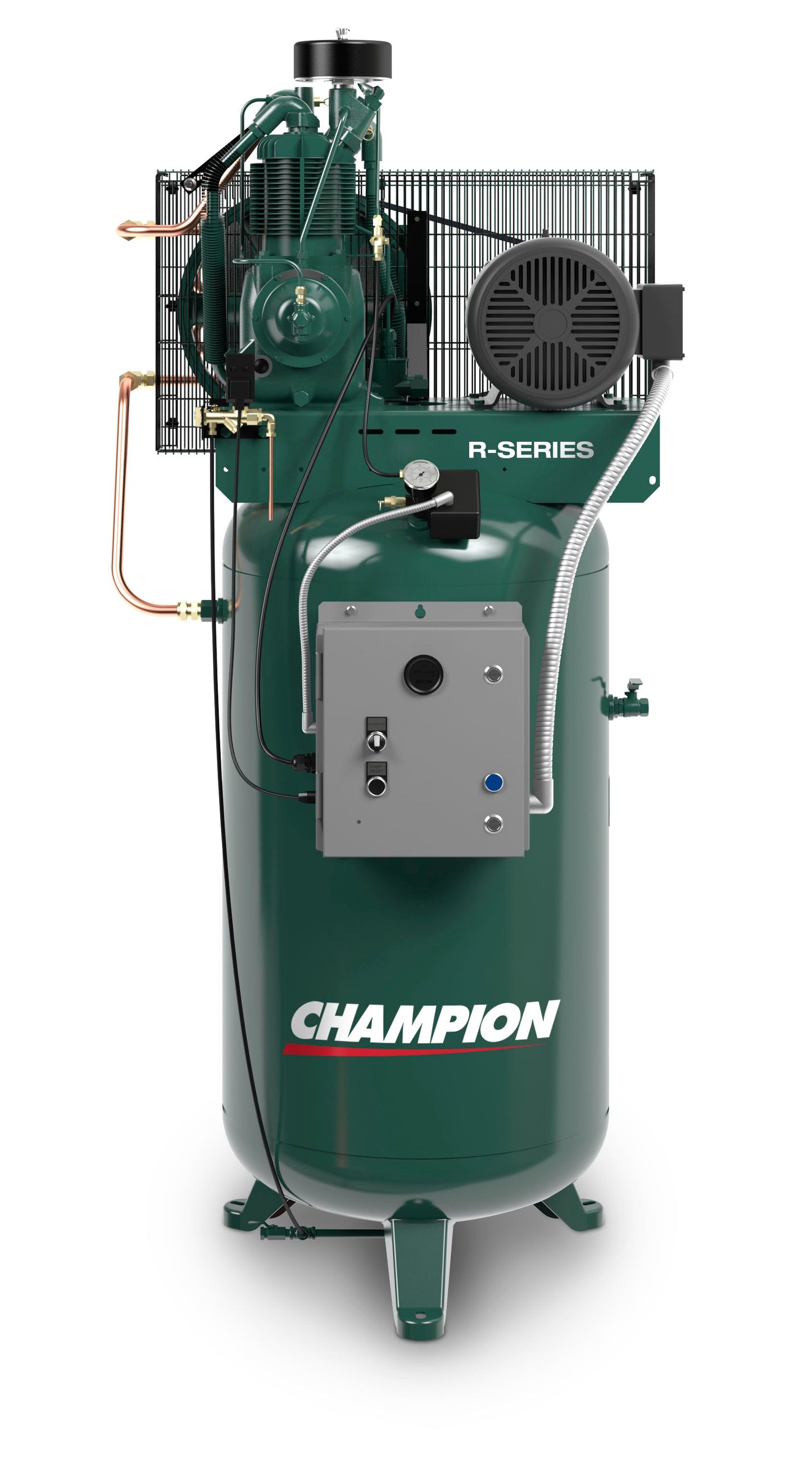

Champion R-Series - 7.5 HP
Champion R-Series - 7.5 HP
HP
Configuration
Tank Configuration
Tank Size
Voltage
Capacity (at 175 PSI)
Configured Part No. BR7F
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
R-Series Lubricated Reciprocating Air Compressor
Two Stage, Splash Lubricated (2-30 HP)
Champion R-Series Compressors have a time-tested, proven design. With rugged standard features, a wide selection of configurations, and quality available options, the R-Series compressors provide high performance, long life, and tremendous value. Champion compressors are the proven choice for your application!
Specifications and Features
- Power: 2 - 30 HP
- Pressure: Up to 175 PSIG
- Air Flow: 4.2 - 202 ACFM at 175 PSIG (electric driven units)
- Mounted Dryer/AirStation option with XCNC dryer available on certain select simplex models
- Gas and Diesel engine drive models available

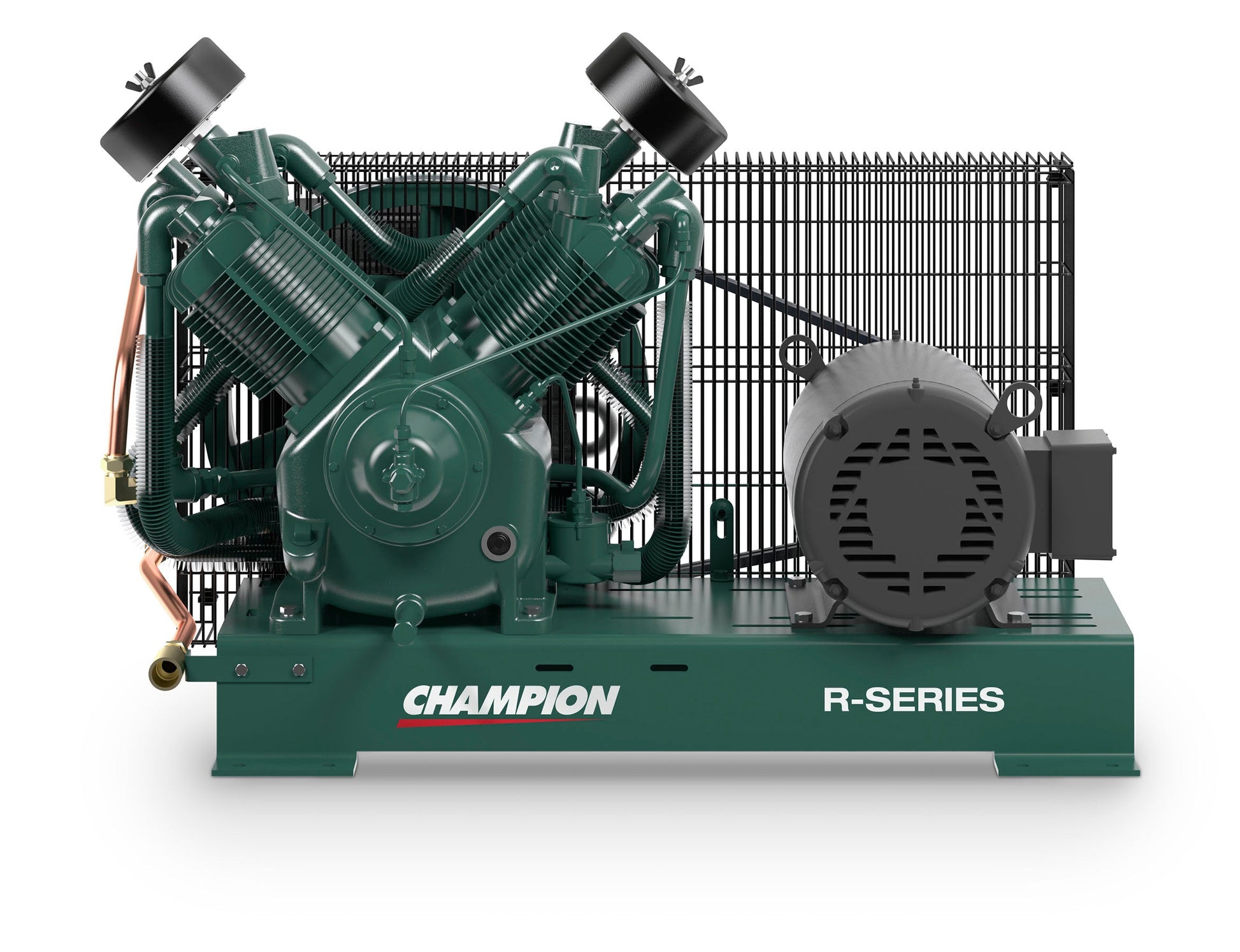

- Mounting: Tank or Base Mounted, Simplex & Duplex Models
- Pumps: Two Stage Splash-Lubricated Pumps
- Warranty: 3-year standard warranty with an option for 6 years
- Factory filled with ChampLub lubricant
- Available Voltages:
- Single phase: 115/208-230
- Three phase: 208/230/460/575
Standard Features
- Load-less starting via centrifugal unloader for reduced energy costs and less motor wear
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial-grade intake filter
- ASME coded receiver
- 0-300 PSIG air pressure gauge on the tank
Available Options
- Multiple tank sizes and variations
- Electric or engine driven
- NEMA 4 full-voltage starter upgrade
- ODP HE/TEFC/TEFC HE motor upgrades
- Control panel upgrades
- Air-cooled with or without moisture separator
- Low oil-level monitor (NEMA 1 or 4)
- Dual control
- Vibration isolators
- Synthetic lubricant
- High temperature switch (NEMA 1 or 4)
- Switches: Test/Off/Auto (NEMA 1 or 4)
- Automatic electric tank drain
Benefits
- Multi-finned cylinders for cooler operating temperatures
- Integral cylinder/head design for trouble-free operation
- Balanced pistons
- Piston rings provide excellent oil control and high efficiency
- Lightweight, two-piece connecting rods
- Pressure relief valves
- Large diameter finned intercoolers
- Optimized cooling fan/flywheel
- Reliable high-flow disc valves
- Tapered roller main bearings
- Balanced crankshaft
- Large capacity cast-iron crankcase
- Centrifugal unloader for minimized starting power and completely load-less starting
